ST-VG90

Digital Vacuum Meter

RM1,000.00
RM1,000.00
-0%
Tax included. Shipping calculated at checkout.
★ The vacuum was measured at 99999Pa~ 0.1Pa.
★ Target vacuum alarm function.
★ One key full degree calibration.
★ System vacuum leak detection, identify the advantages and disadvantages of vacuum degree.
★ Portable design,battery power supply,power display,automatic shutdown (no operation for 10 minutes), etc.

Product Description


LARGE DIGITAL LCD DISPLAY
Sensitive buttons
7/16"-20UNF CONNECTION





FEATURES

Buzzer alarm

Instantaneous response

Built-in Filter

Convenient design

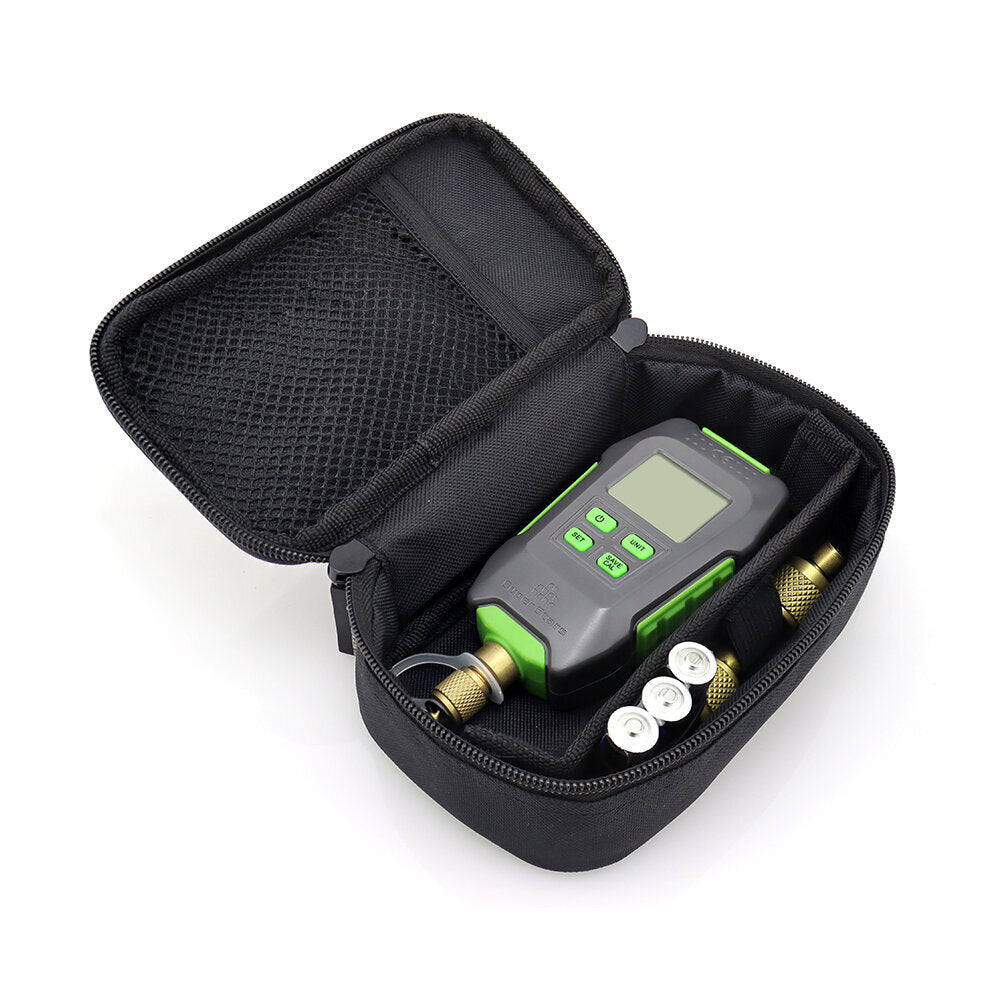

Compact tool kit, easy to carry

Large Oil Sight Glass

extension joint

Meet different demands

All Brass Air Inlet

Intelligent low power consumption

Can be used for 3-6 months

High Performance Lithium Battery


SPECIFICATIONS

Range 99,999 Pa ~ 0.1 Pa
740,000 ~ 0.75 Micron
Accuracy 0.1 Pa ~ 1000 Pa
Reading ±5% (at 20℃)
Resolution 0.1 Pa (<10 Pa)
1 Pa (<100 Pa)
10 Pa (<1000 Pa)
Unit Pa, mBar, mmHg, mTorr, InHg, Microns
Battery life 40 hours (3×AA battery)
Maximum overload pressure 0.5 MPa / 72 PSI
Operating temperature -5~50℃ (-23~122℉)
Buzzer alarm 90 dB, shut down after 10 seconds
Inlet port 7/16"~20 UNF (1/4" SAE)
