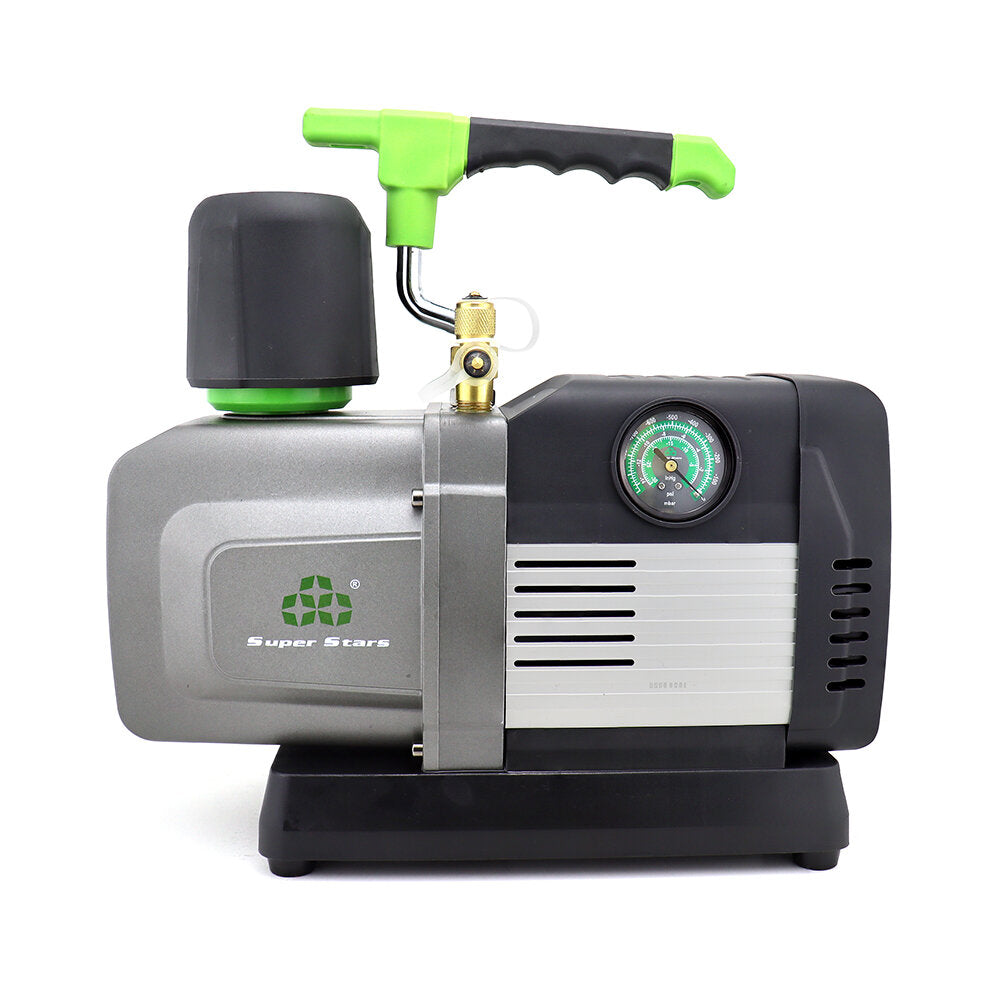

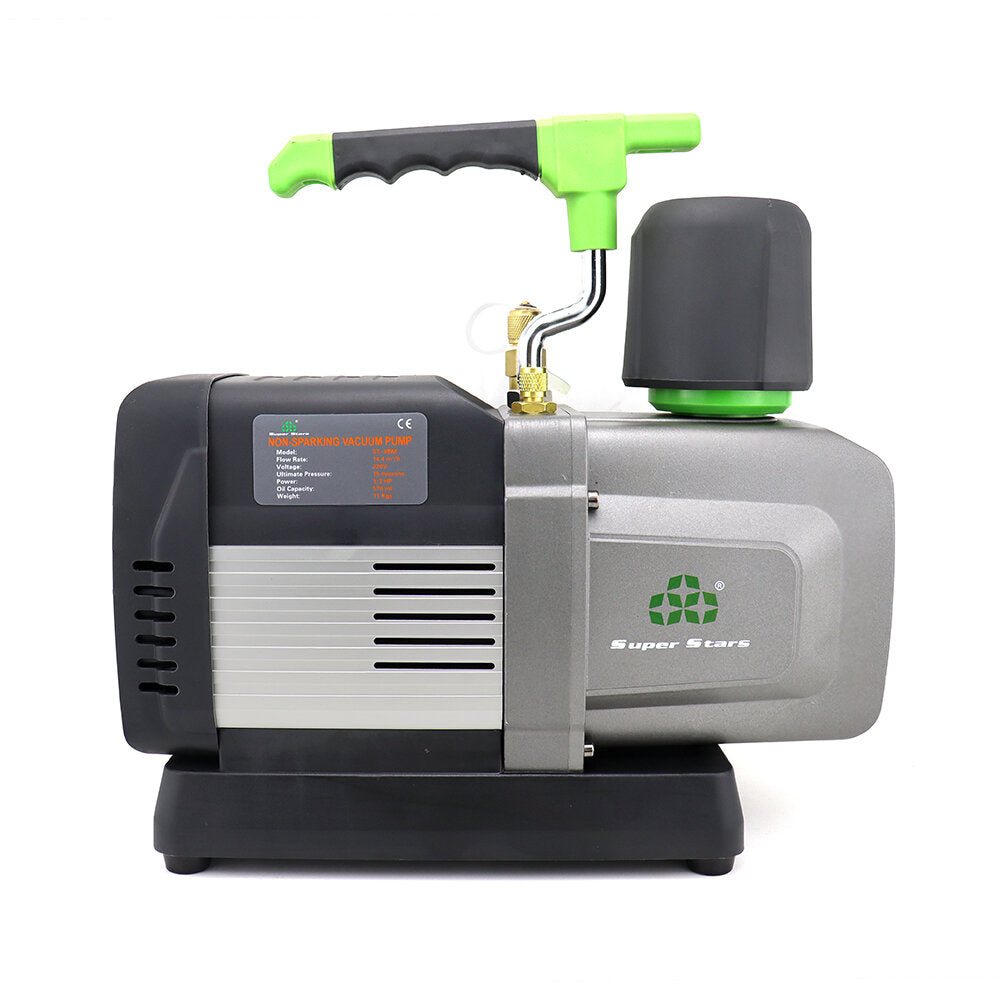

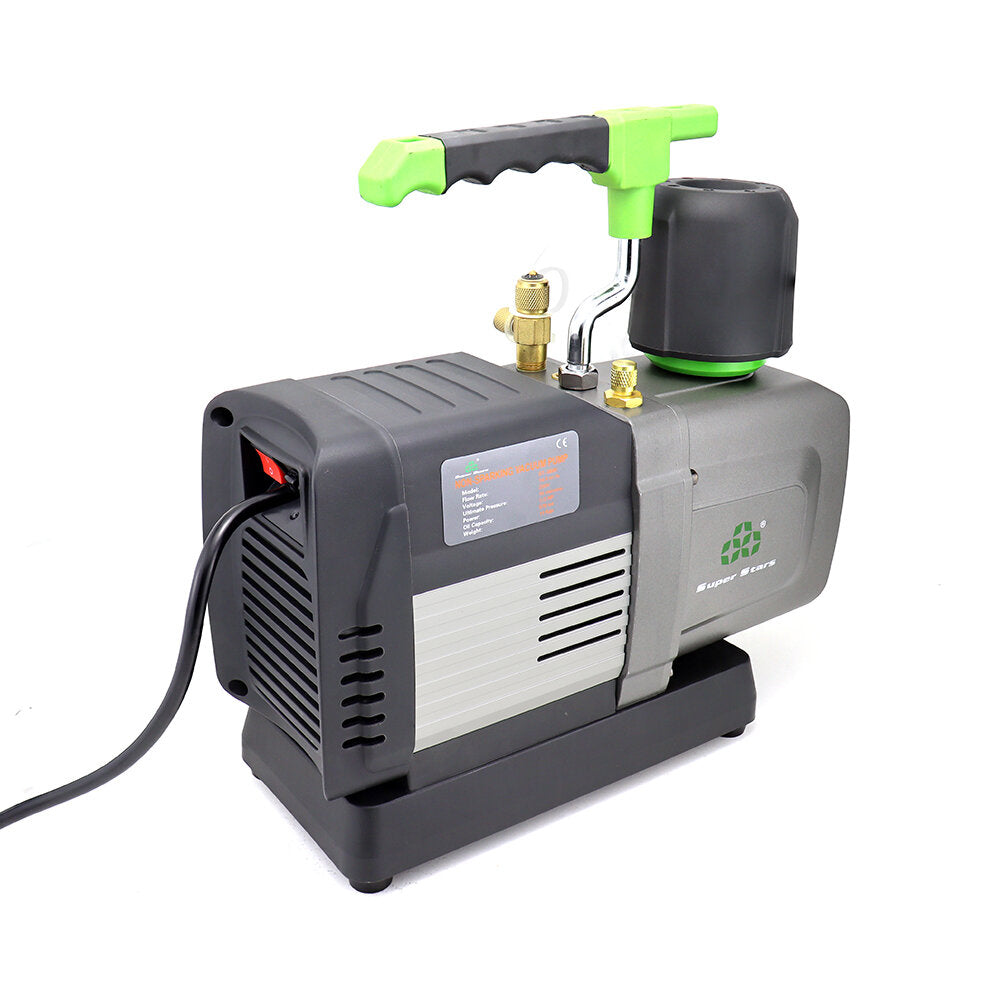

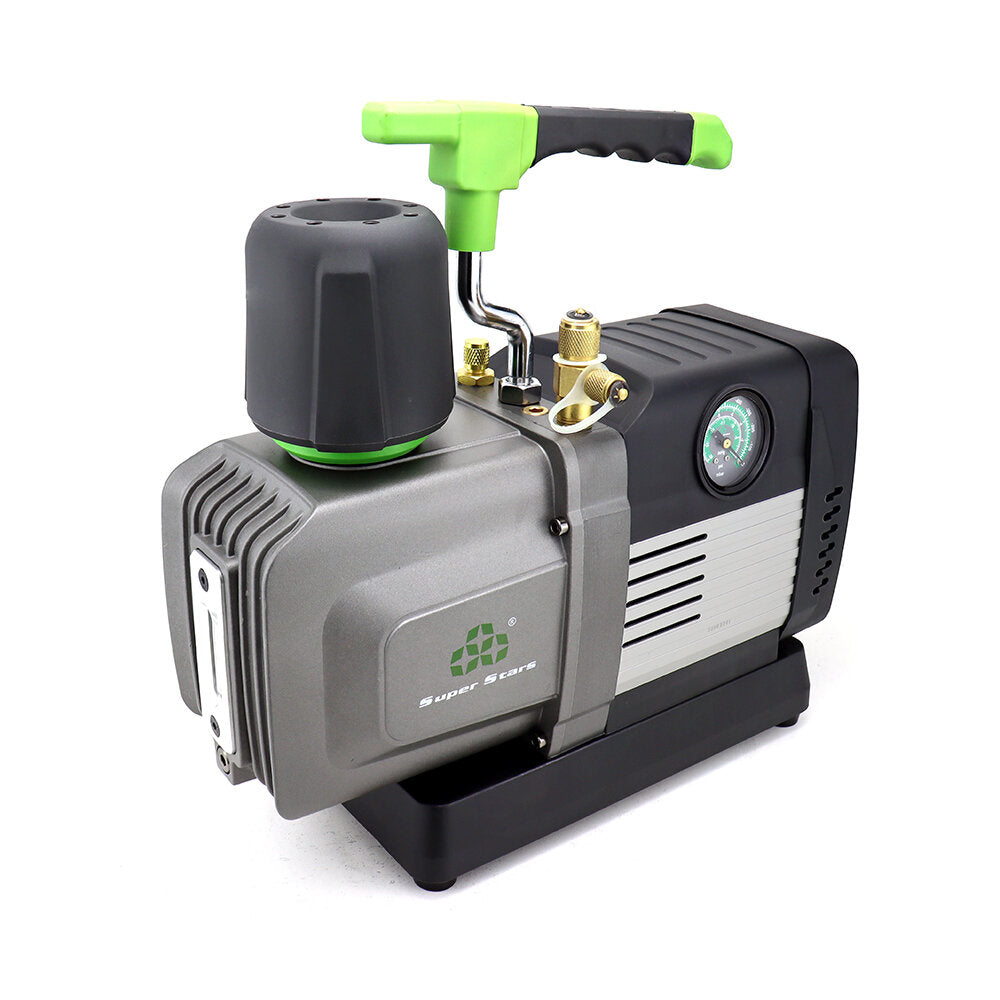

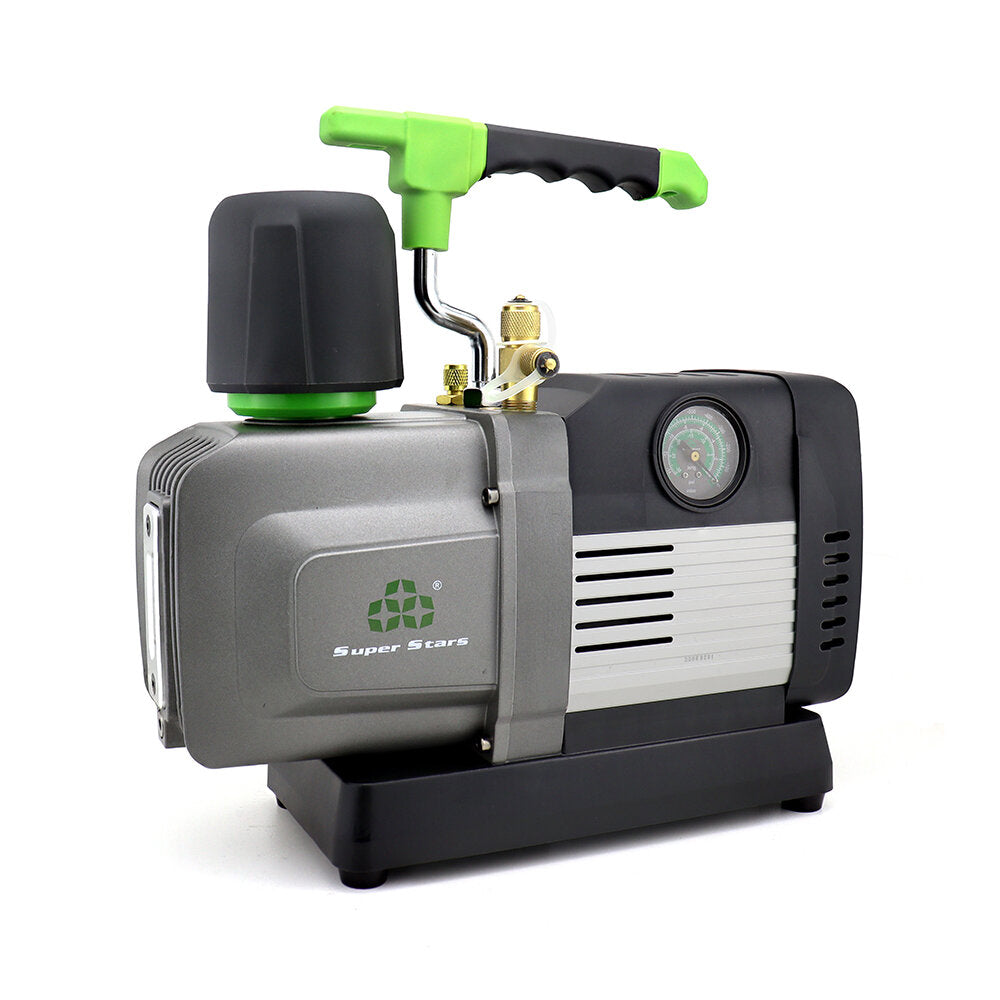

Intelligent Vacuum Pump Dual Stages ( 6.5 CFM , 8.5CFM , 10.5CFM , 12.5FM )

RM960.00
RM960.00
-0%
Tax included. Shipping calculated at checkout.
FLOW RATE: 6.5 CFM Dual Stages
★ BUILT-IN SOLENOID VALVE & VACUUM GAUGE
★ SAFETY, EXPLOSION-PROOF, SPARKLESS
★ DC BRUSHLESS MOTOR, MORE RELIABLE
★ ONE YEAR WARRANTY

Product Description


Built-in high precision vacuum gauge
Brushless explosion-proof motor
integrated cylinder





FEATURES



Built-in filter

Filter oil mist, less pollution

Built-in Filter

all brass air inlet

Strong and durable

Large Oil Sight Glass

large oil sight glass

Prevent oil shortage, refueling in time

All Brass Air Inlet

Grille thermovent

Effectively protect machine performance

High Performance Lithium Battery


SPECIFICATIONS

Item No. ST-6BM ST-8BM ST-10BM ST-12BM
Flow Rate 6.5 CFM
184 L/MIN		 8.5 CFM
241 L/MIN		 10.5 CFM
297 L/MIN		 12.5 CFM
354 L/MIN
Pole No. Dual Stages Dual Stages Dual Stages Dual Stages
Ultimate Vac. 15 microns 15 microns 15 microns 15 microns
Power 1 HP 1 HP 1 HP 1 HP
Inlet Port 1/4" & 3/8" flare 1/4" & 3/8" flare 1/4" & 3/8" flare 1/4" & 3/8" flare
Oil Capacity 600 ml 600 ml 600 ml 600 ml
Dimension 349×139×333mm 349×139×333mm 349×139×333mm 349×139×333mm
Weight 11 kgs 11 kgs 11 kgs 11 kgs
Voltage 220V 50/60Hz
